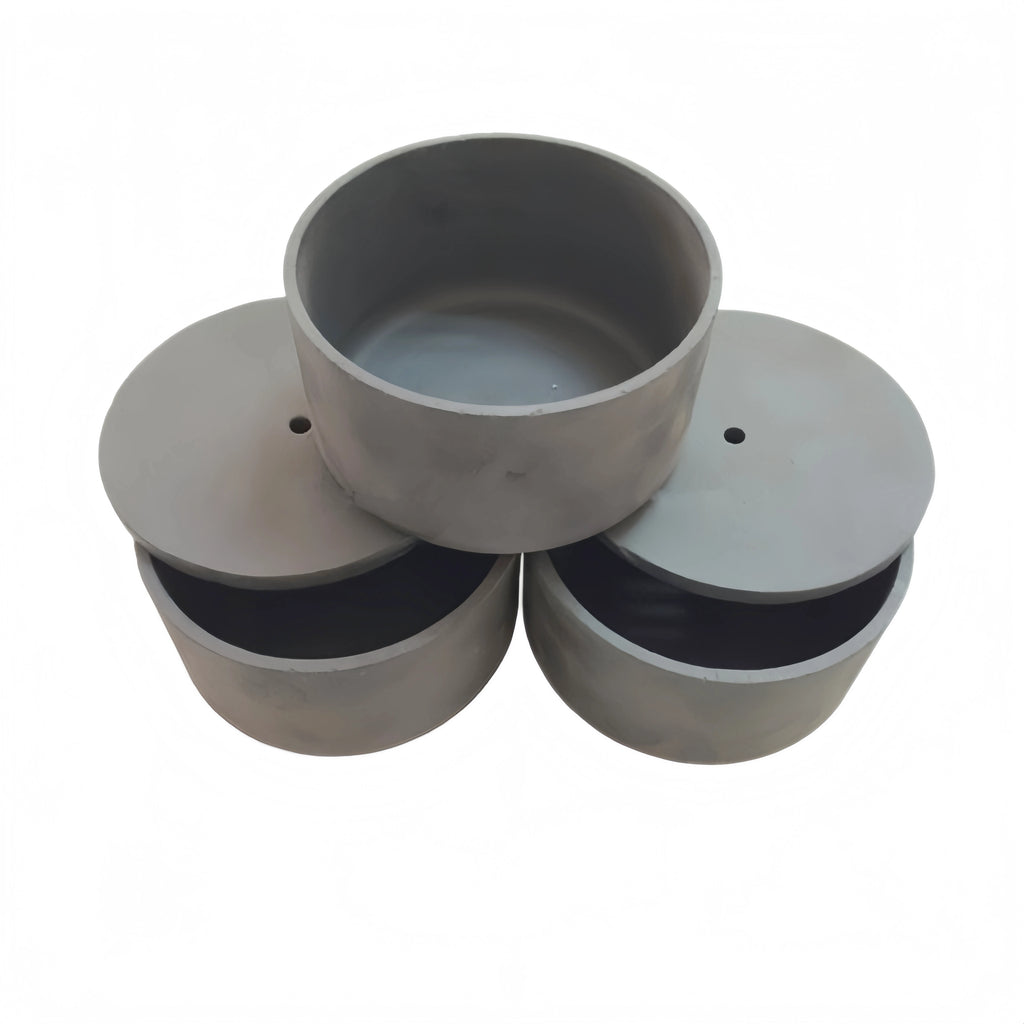

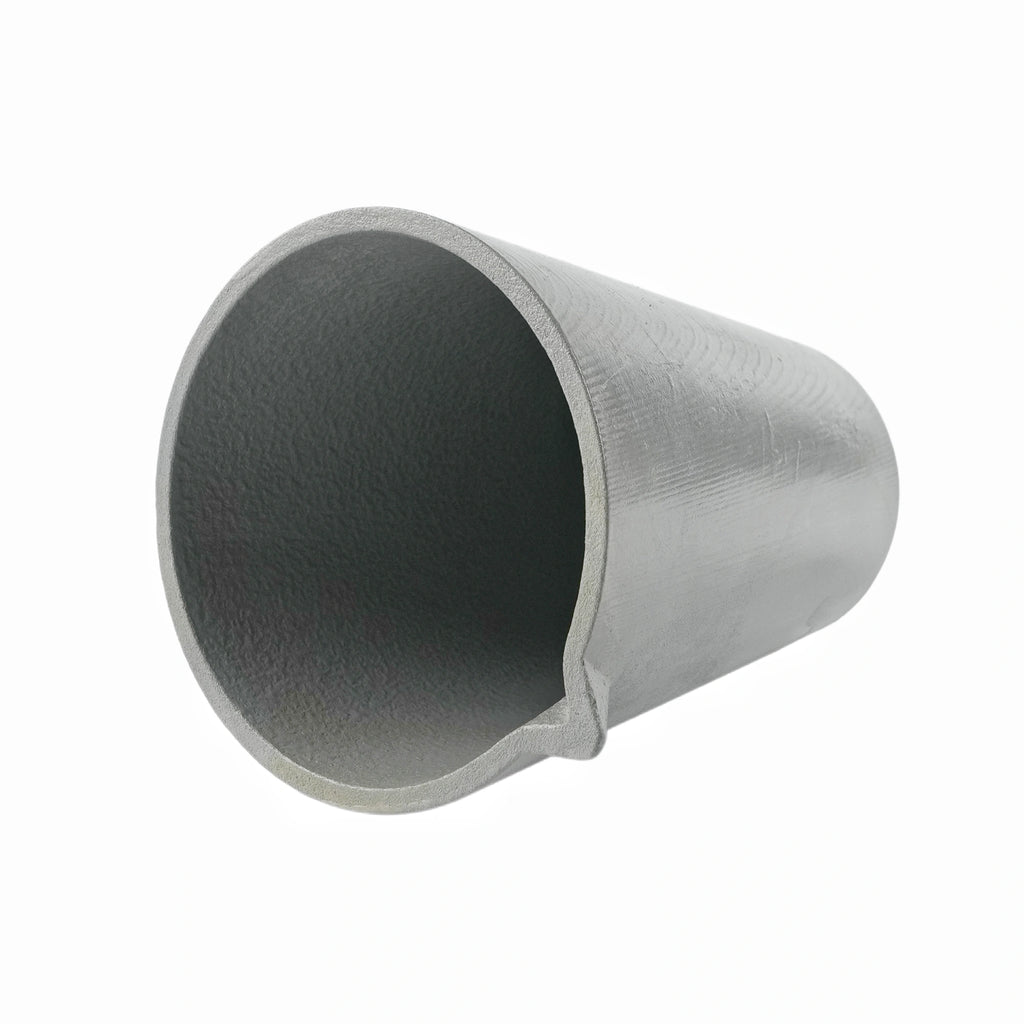

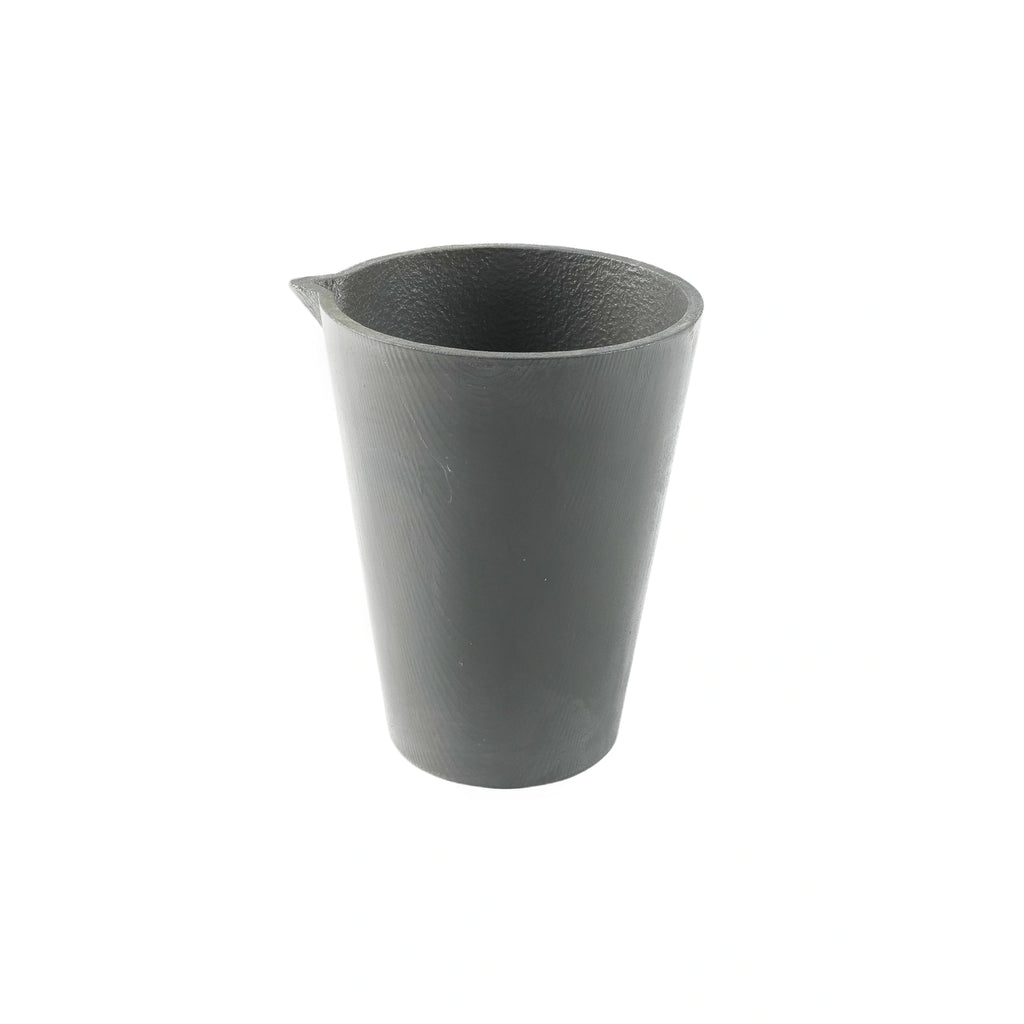

Silicon Nitride Bonded Silicon Carbide (NSiC) Crucibles
Silicon Nitride Bonded Silicon Carbide (NSiC) Crucibles
Product Overview
Our NSiC crucibles are high-performance ceramic vessels designed for melting, holding, and casting metals, alloys, and specialty materials at elevated temperatures. Bonded with a silicon nitride (Si₃N₄) matrix, they offer an optimal balance of thermal conductivity, mechanical strength, and chemical inertness, making them ideal for aggressive melting environments.
Key Properties
-
Max Service Temperature: Up to 1,450°C (1,500°C intermittent)
-
Excellent Thermal Shock Resistance: Withstands rapid heating and cooling without cracking
-
High Corrosion Resistance: Inert to most molten metals, slags, fluxes, and acids
-
Good Thermal Conductivity: Efficient heat transfer for energy-saving melting
-
High Mechanical Strength: Maintains structural integrity under heavy loads
-
Low Porosity & Permeability: Prevents metal penetration and contamination
-
Long Service Life: Outperforms conventional clay/graphite crucibles
Typical Specifications
| Parameter | Value |
|---|---|
| Bulk Density | ≥ 2.65 g/cm³ |
| Apparent Porosity | ≤ 17% |
| Flexural Strength (RT) | ≥ 80 MPa |
| Flexural Strength (1,200°C) | ≥ 70 MPa |
| Thermal Conductivity (1,000°C) | ≥ 16 W/m·K |
| CTE (RT–1,200°C) | ~5.0 × 10⁻⁶/°C |
| Max Operating Temp | 1,450°C |
Customization Options
We offer comprehensive customization to suit your specific melting requirements:
-
Capacity: 0.5L – 200L (or as required)
-
Shapes: Cylindrical, conical, rectangular, or custom profiles
-
Wall Thickness: Standard or reinforced heavy-duty designs
-
Lids & Covers: Flat, domed, or vented lids available
-
Pouring Features: Tapered rims, spouts, or lip designs for clean pouring
-
Handling Options: Lifting lugs, bails, or fork pockets
-
Surface Finish: As-sintered or glaze-coated for enhanced protection
Typical Applications
-
Melting and holding non-ferrous metals (aluminum, copper, zinc, brass)
-
Precious metal refining (gold, silver, platinum)
-
Glass melting and specialty glass production
-
Alloy preparation and foundry operations
-
Chemical and laboratory high-temperature processing
-
Battery material calcination
