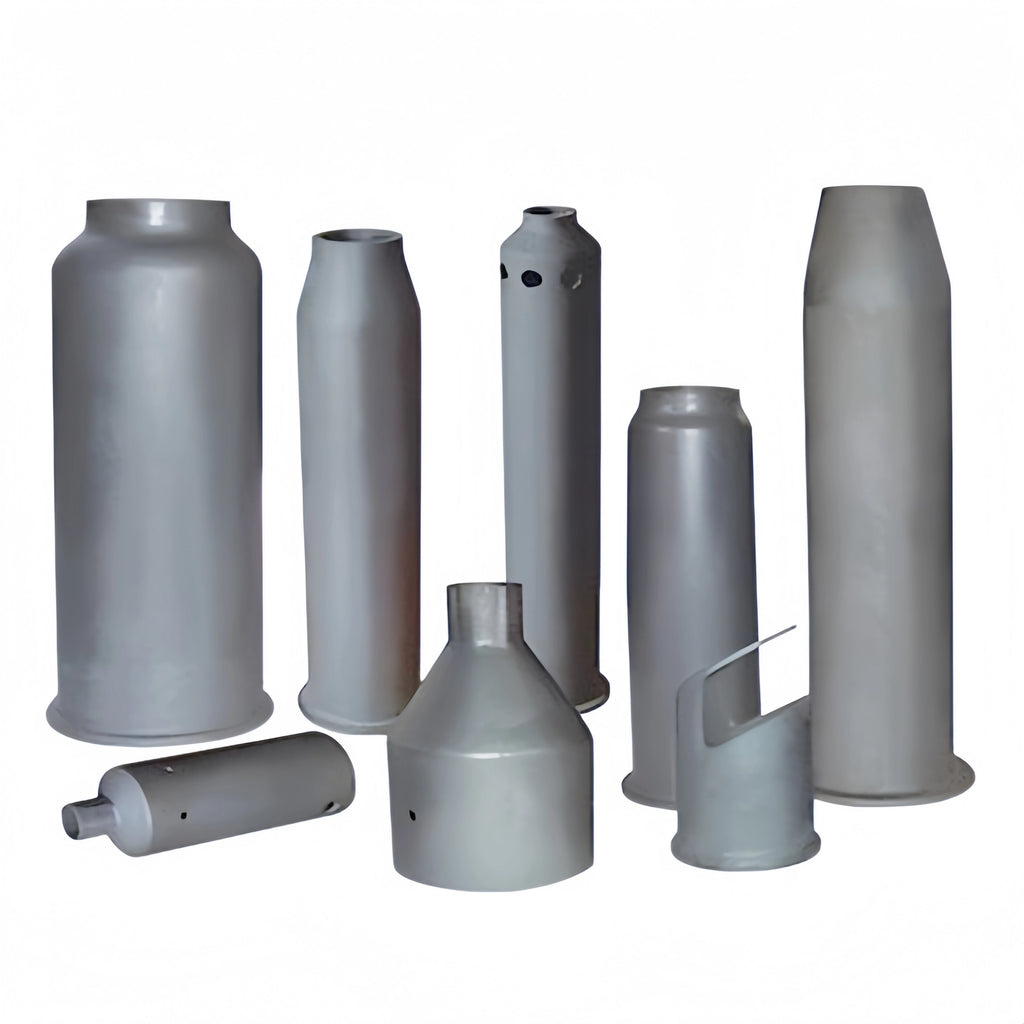

Silicon Nitride Bonded Silicon Carbide (NSiC) Nozzles
Silicon Nitride Bonded Silicon Carbide (NSiC) Nozzles
Product Overview
Our NSiC nozzles are high-performance ceramic components designed for abrasive, corrosive, and high-temperature flow applications. Bonded with a silicon nitride (Si₃N₄) matrix, they provide an optimal balance of erosion resistance, thermal stability, and chemical inertness, delivering extended service life in the most demanding industrial environments.
Key Properties
-
Max Service Temperature: Up to 1,450°C (1,500°C intermittent)
-
Excellent Erosion & Abrasion Resistance: Ideal for high-velocity particulate flow
-
Outstanding Thermal Shock Resistance: Withstands rapid temperature fluctuations without cracking
-
Superior Corrosion Resistance: Inert to most acids, alkalis, slags, and molten metals
-
High Mechanical Strength: Maintains structural integrity under pressure and impact
-
Precision Bore Accuracy: Ensures consistent flow characteristics and spray patterns
-
Oxidation Resistant: Stable performance in oxidizing atmospheres
Typical Specifications
| Parameter | Value |
|---|---|
| Bulk Density | ≥ 2.65 g/cm³ |
| Apparent Porosity | ≤ 17% |
| Flexural Strength (RT) | ≥ 80 MPa |
| Flexural Strength (1,200°C) | ≥ 70 MPa |
| Mohs Hardness | 9 |
| Max Operating Temp | 1,450°C |
Typical Applications
-
Burner nozzles and gas injection systems for high-temperature furnaces
-
Sandblasting and abrasive media blasting nozzles
-
Chemical spray nozzles in corrosive environments
-
Powder injection and pneumatic conveying systems
-
Desulfurization and flue gas treatment nozzles
-
Glass melting and ceramic firing equipment
-
Steel and foundry industry taphole and lance nozzles
Customization Options
We offer comprehensive customization to match your specific flow and mounting requirements:
-
Bore Diameter: From 1mm to 100mm (as per flow rate specifications)
-
Overall Dimensions: Length, outer diameter, and profile tailored to your equipment
-
Inlet/Outlet Configurations: Tapered, threaded, flanged, or quick-connect fittings
-
Orifice Shapes: Round, slot, multi-hole, or custom profiles
-
Mounting Style: Threaded, press-fit, flanged, or weldable designs
-
Surface Finish: As-sintered, ground, or precision-polished
-
Special Features: Anti-backflow designs, wear-resistant inserts, or reinforced tips
